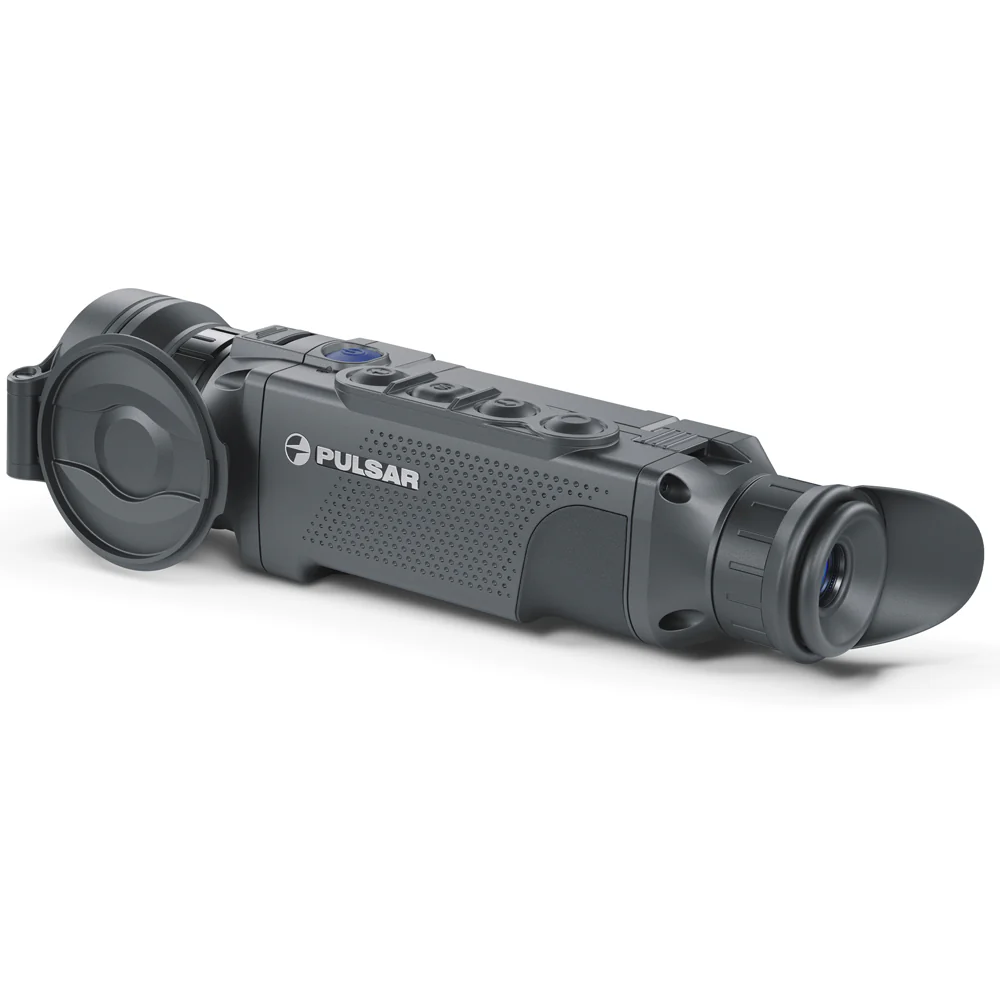

Helion 2 XQ38 Thermal Monocular

Description

Pulsar’s Helion 2 XQ38F is an ultramodern thermal monocular with a full-color HD AMOLED display, built-in recorder and camera and wireless connectivity, enabling users to livestream to Facebook or YouTube. Additionally, the Helion 2 has 1,350-yard long-range detection and operates at temperatures from -25C(-13F) to 50C (122F). With an IPX7 waterproof ratings, updatable software and rechargeable battery, the Helion 2 is the crown jewel of modern monocular technology.

Included in Package

• Battery pack
• USB cable
• Hand strap
• Lens Cleaning Cloth
• Carrying Case

Battery Used

• Type: Pulsar IPS7 (Li-ion)
• Quantity: 1
• Battery Life (w/o video out): 9 Hours

Product Downloads

• Product Manual
• Quick Start Guide
• Product Specifications

Features

• Enhanced thermal sensor up to 1,350 yards
• NETD <40mK
• 17-micron pixel pitch
• 384x288 thermal sensor
• Full color HDAMOLED Display
• 3-12x digital magnification
• 8 color palettes
• Built-in recorder and camera
• 16 GB memory
• Operates from -25C to 50C
• IPX7 Waterproof rating
• B-Pack rechargeable battery system

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Detector type  Uncooled ASi  Frame rate,  50 HZ Microbolometer resolution, pix.  384x288 Pixel pitch, µm  17 NETD, mK  <40  Display type AMOLED  Display resolution, pix.  1024x768  Magnification, x 3-12  Digital zoom, x 2/4  Lens focus, mm  35 Relative aperture, D/f'  1:1 Field of View,°  10.7 Minimum focusing distance, m  3-5 Eye relief, mm  15 Exit pupil, mm  5 Diopter adjustment, dptr.  ± 5 Detection range, m (object H/W = 1,7/0,5m)  1350 Built-in video recorder  yes  Built-in memory size, Gb  16 Built-in Wi-Fi module  yes Stream Vision application support  yes Micro USB socket  Power/data  Stadiametric rangefidner  yes  Color palettes  8 Power supply, V  3.0-4.2 v Battery type  Pulsar IPS7 (Li-ion)  Battery life, hour  9 External power supply  5V MicroUSB  Tripod mount, inch  1/4 inch Operating Temp, °С - 25 … +50  Housing material  Magnesium alloy  Waterproof  IPX7 Calibration (non-uniformity correction)  manual, auto, semi-auto  Length, mm 226mm Width, mm 55mm Height, mm 58mm Weight (without batteries), Kg 0.45 SKU  77396
