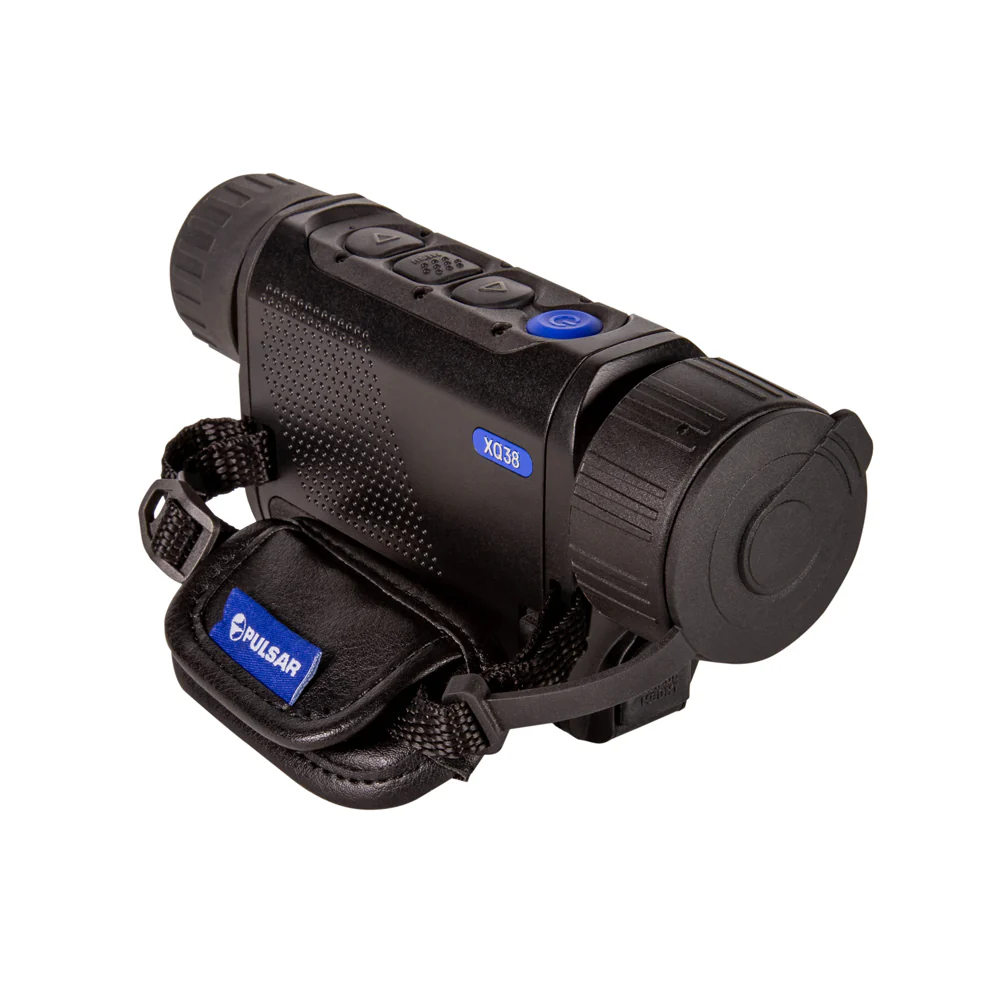

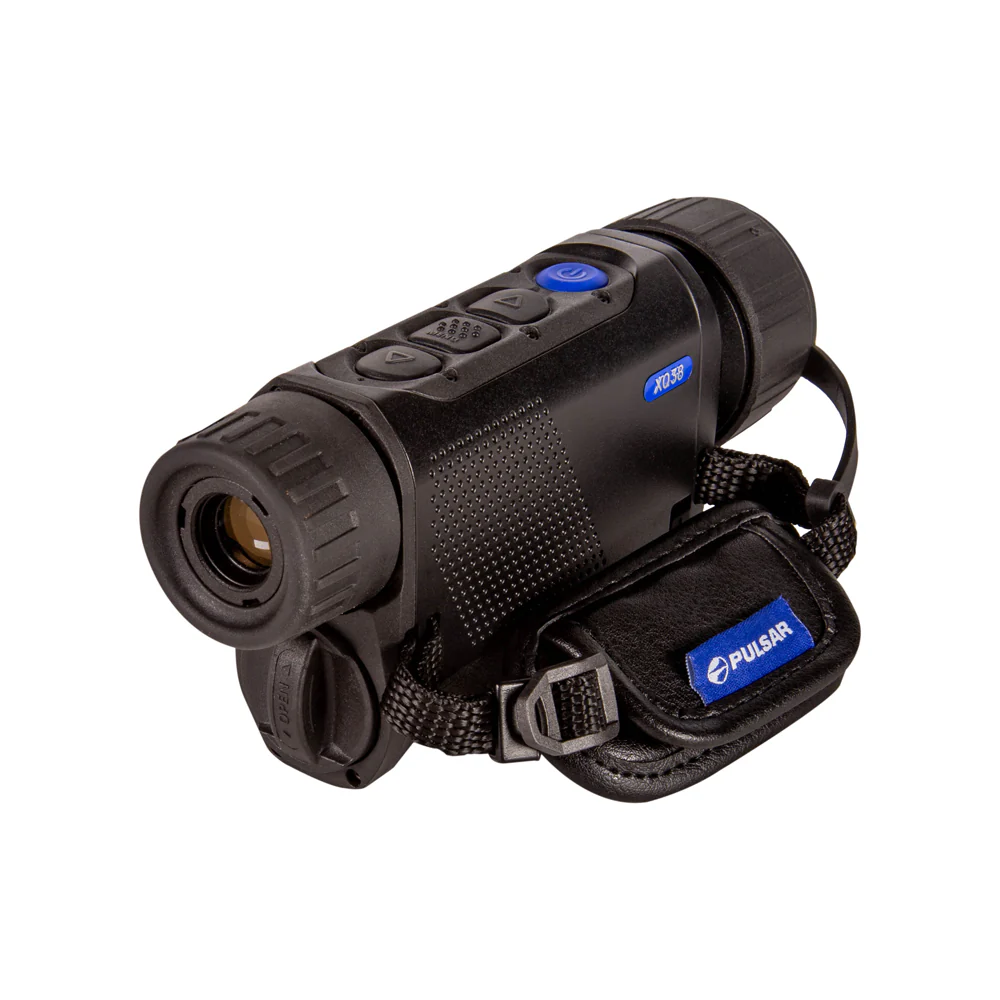

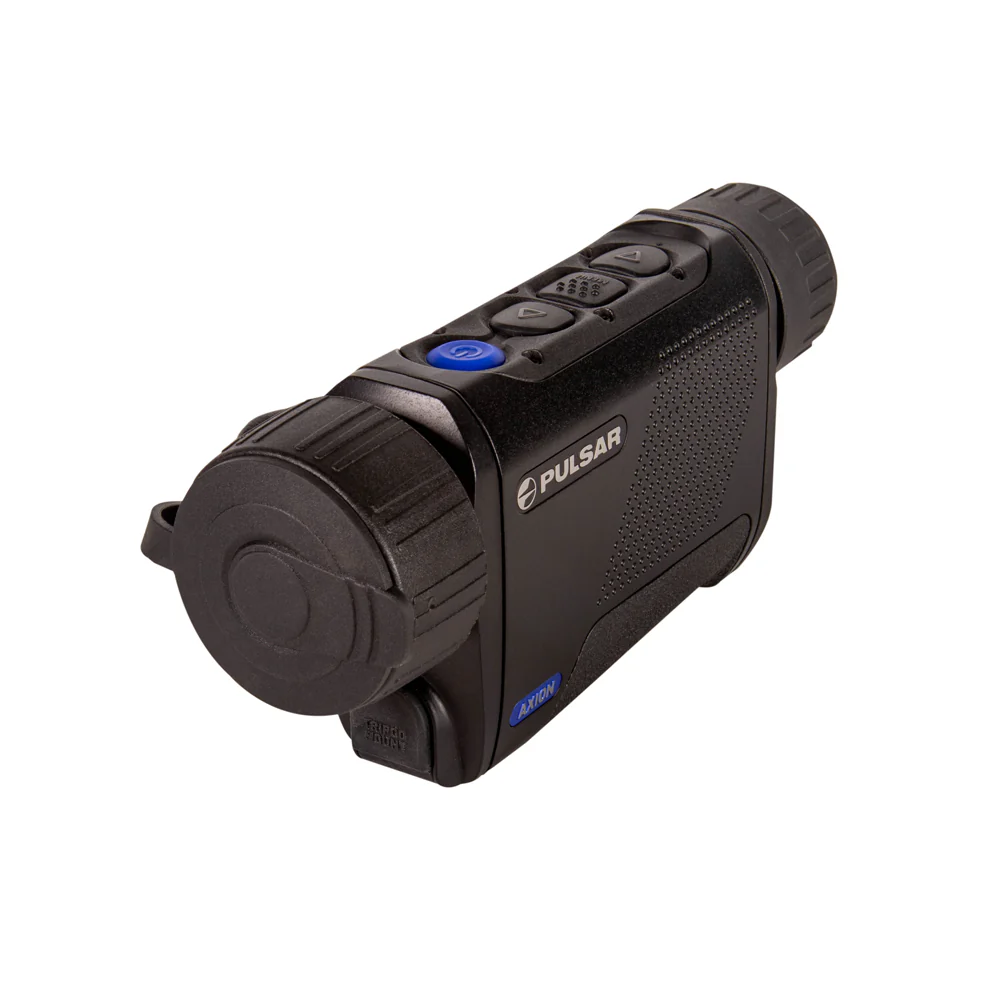

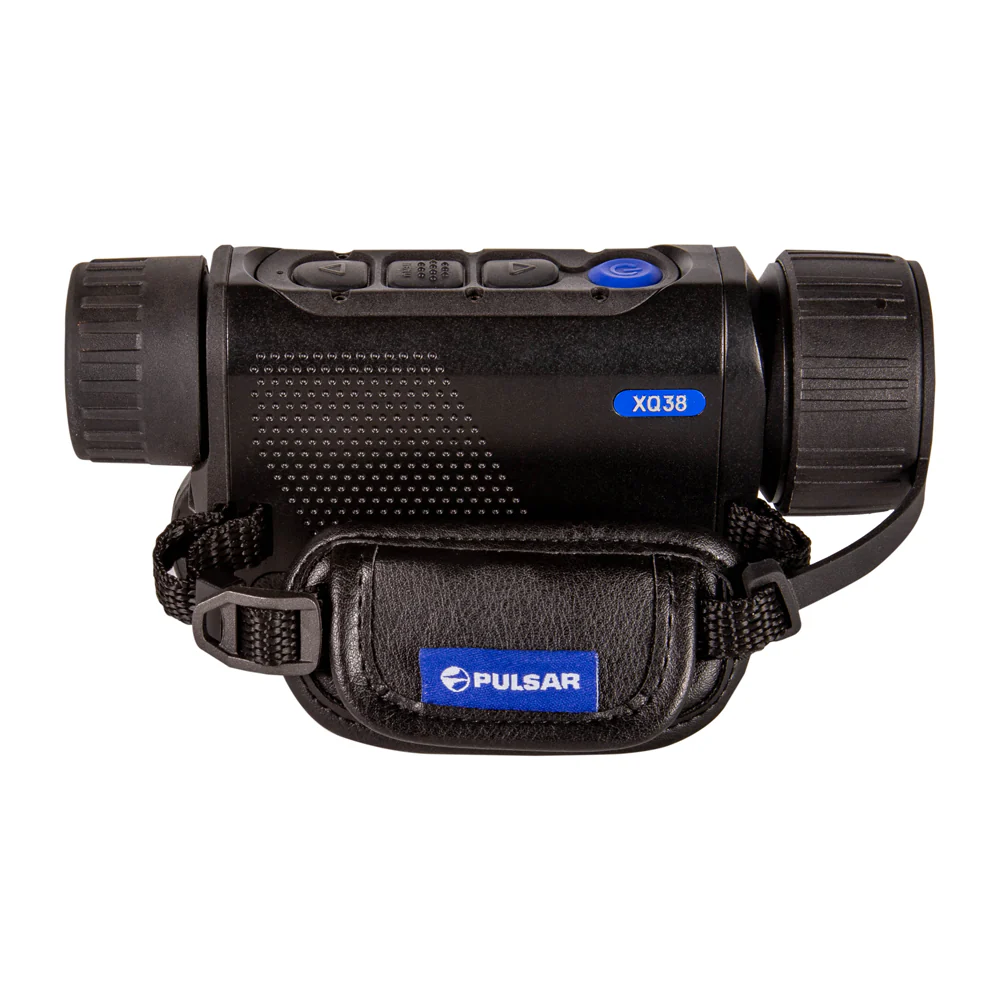

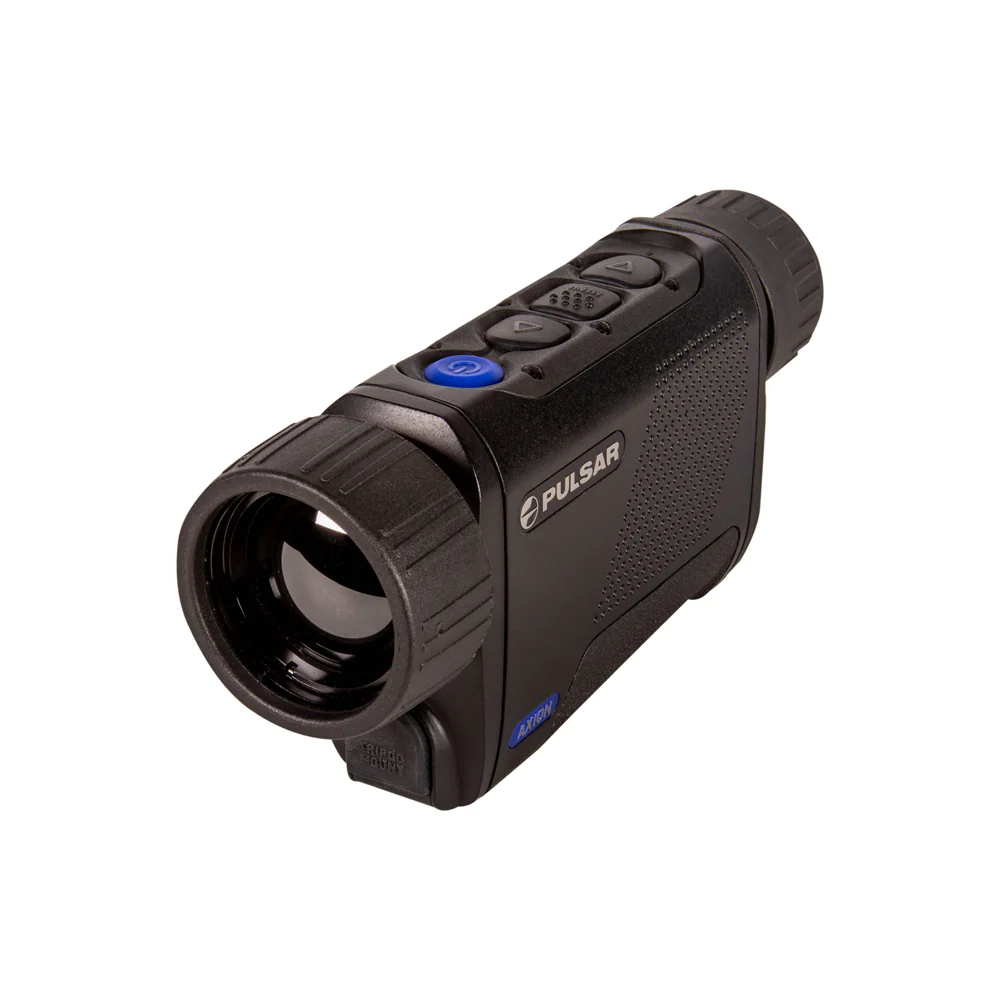

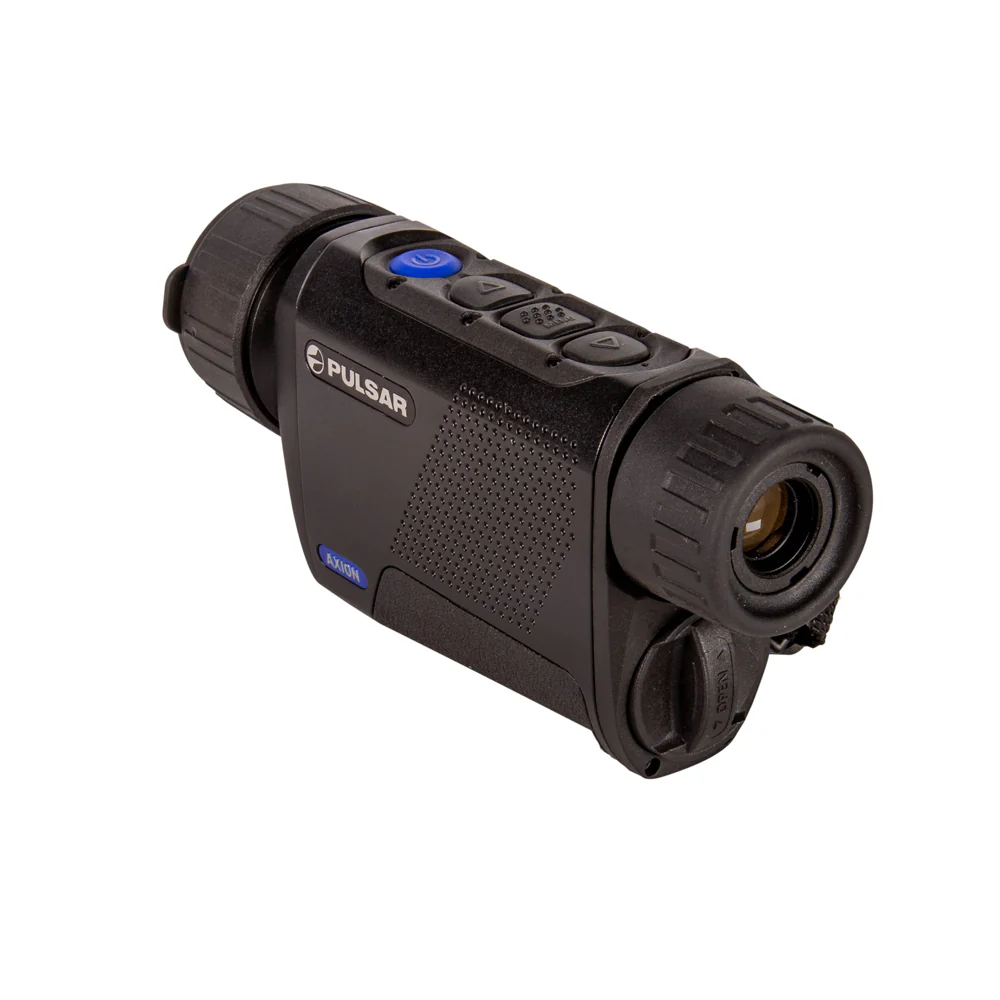

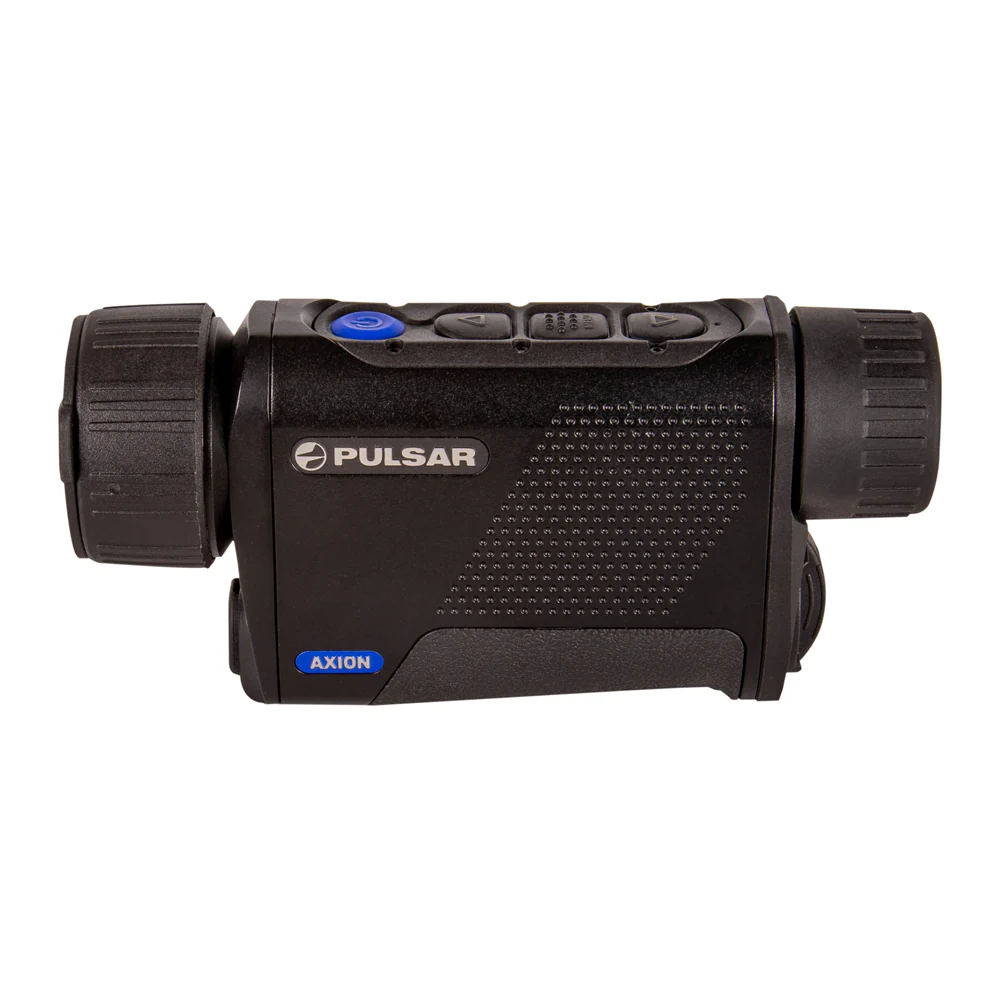

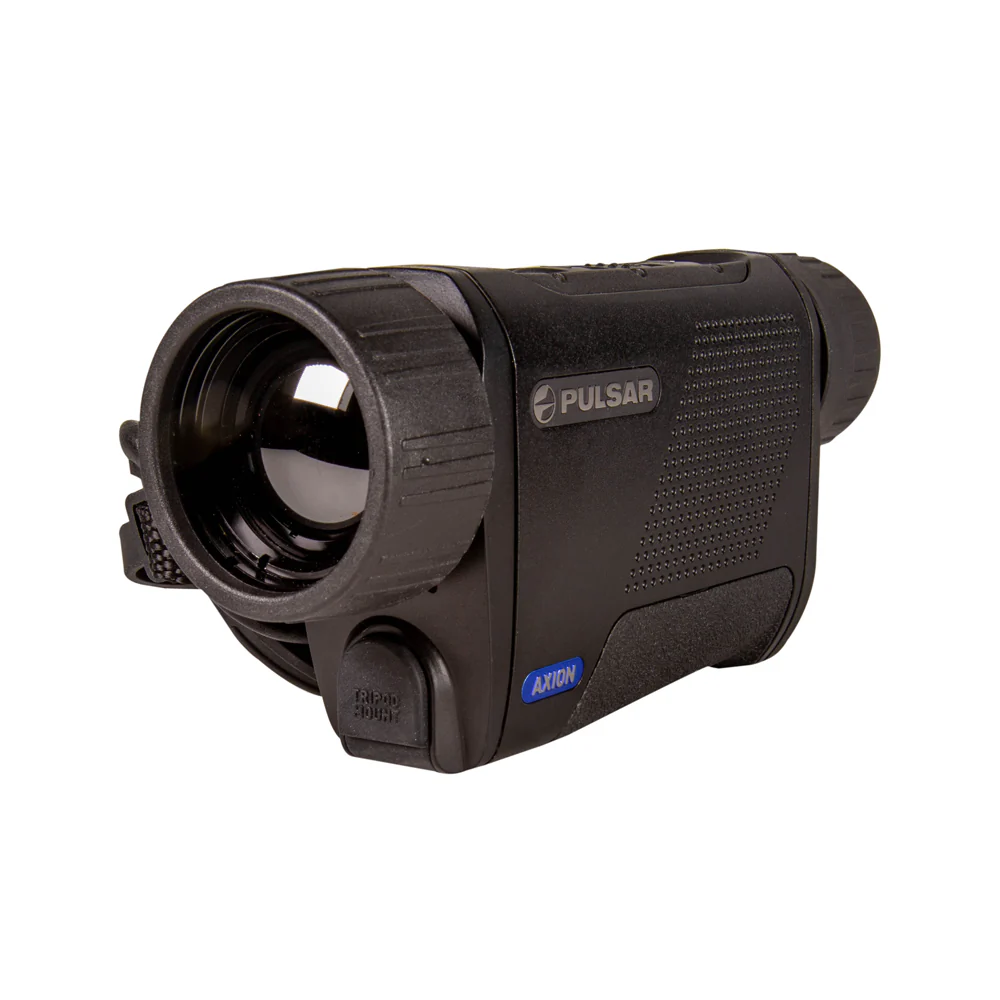

Axion XQ38 Thermal Monocular
Description
The new Axion XQ series has rugged, reliable all-metal, yet lightweight housing. Even though the device is slightly larger than Axion XM series, it perfectly fits into user's hand. Small weight of the monocular makes it a perfect option for long outdoor trips when light yet capable unit is necessary.
Alongside the new sensor, Pulsar Axion XQ boasts a proprietary Image Detail Boost picture enhancement technology, which increases clarity and detailedness of image, and together with HD AMOLED display ensures better identification of the objects. 38mm lens combined with 384Ñ…288 @ 17µm thermal sensor offers not only a long detection range of up to 1350 m., but also a wide field of view of 9.8°. New Pulsar IPS5 quick-change rechargeable battery provides up to 6 hours of non-stop operation.
Included in Package
- APS 5 Battery Pack
- APS 5 Battery Charger
- USB cable
- 220-USB plug
- Lens cleaning cloth
- Carrying case

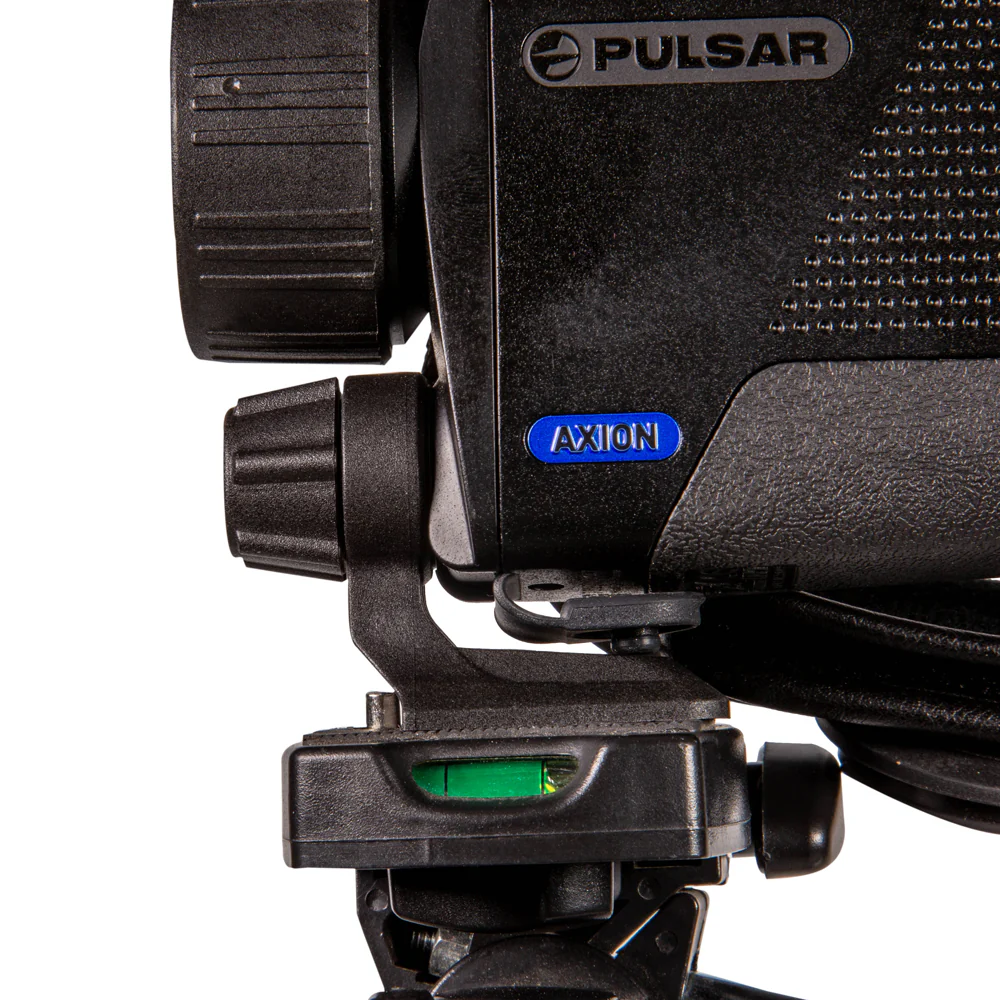

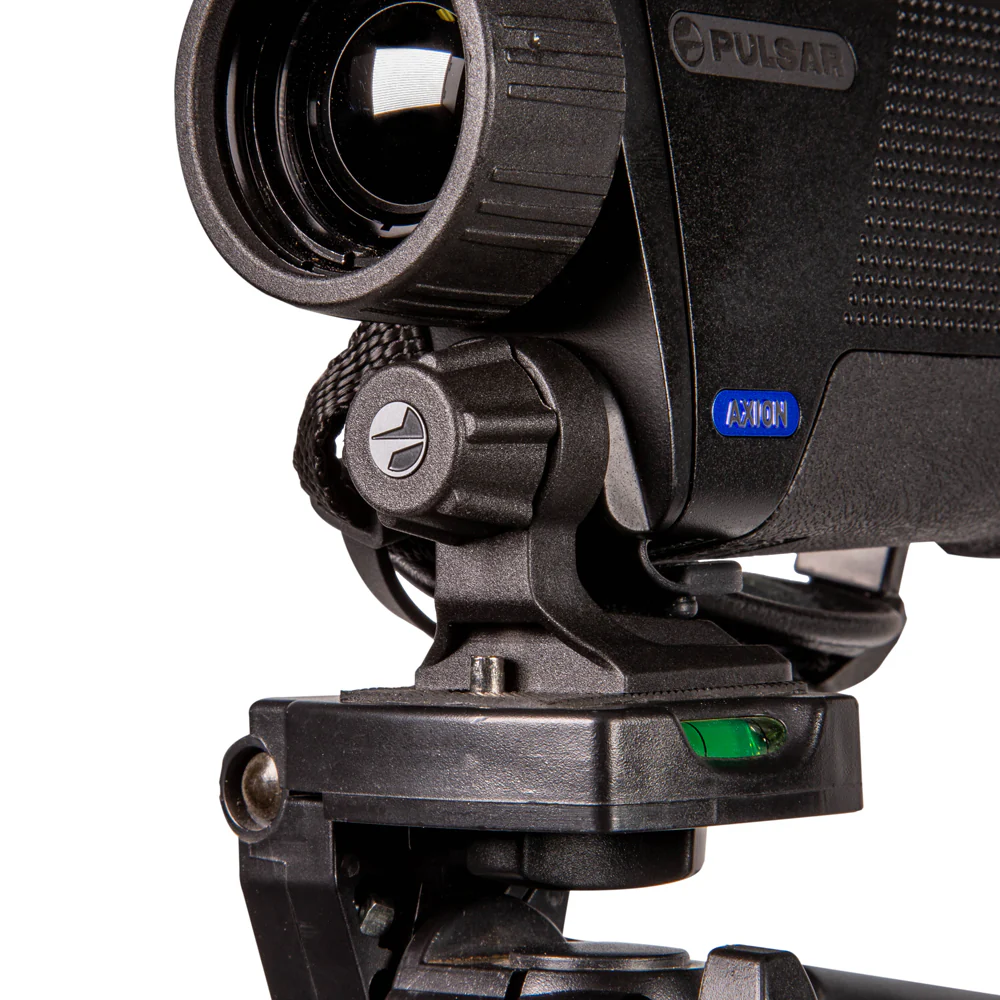

- Tripod mount adapter
Battery Used
- Type: APS 5 (Li-Ion) Battery Pack
- Quantity: 1
Product Downloads
Features
- Sensor resolution 384Ñ…288 @ 17µm
- High sensitivity sensor (NETD < 40 mK)
- 6 Hours of non-stop operation
- Detection range up to 1350 m
- Full color HD AMOLED display
- Highly durable magnesium housing
- Variable digital zoom 3.5-14x
- Instant start-up
- Picture-in-picture mode
- IPX7 waterproof-rated
EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.
Specifications
| Frame Rate, Hz | 50 |
|---|---|
| Microbolometer Resolution, pixels | 384x288 |
| Sensor response | LWIR |
| Pixel Pitch, µm | 17 |
| Display Type | AMOLED |
| Display Resolution, pix. | 1024x768 |
| Built-in Video Recorder Availability | Yes |
| Operating modes | Rocks, Forest, Identification |
| Integrated Wi-Fi | Yes |
| Defective Pixel Repair Option | Yes |
| Stadiametric Rangefinder | Yes |
| Multiple color palettes | Yes |
| Stream Vision support | Yes |
| Magnification | 3.5-14 x |
| Digital Zoom | 4 x |
| Lens diameter, mm | 32 |
| Lens Focus, mm | 38 |
| Relative aperture, D/f' | 1.2 |
| Field of View, degrees | 9.8 |
| Field of view, m@100m | 17.2 |
| Field of view, ft@100yd | 56.4 |
| Minimum focusing distance, ft/m | 10 / 3 ft / m |
| Eye Relief | 15 mm |
| Exit Pupil, mm | 3.5 |
| Diopter Adjustment | +4/-5 |
| Focusing Type of Distance | Objective |
| Range of Detection | 1475 / 1350 yd / m |
| Power Supply | 4.2 - 3.0 V |
| Battery Type | APS 5 (Li-Ion) |
| Battery life, (with video out off), hours | 5 |
| External Power Supply | 5V MicroUSB |
| Lens Material | Germanium |
| Body Material | Magnesium alloy |
| Tripod Mount, inch | 1/4 |
| Operating Temperature | -13 to 104 / -25 to +40 F / C |
| Level of Protection (acc. to IEC 60529) | IPX7 |
| Calibration | Manual, Automatic, Semi-automatic |
| Length | 6.6 / 167 in / mm |
| Width | 1.9 / 49 in / mm |
| Height | 2.9 / 73 in / mm |
| Weight, oz | 12.3 oz |
Original: $999.00
-70%$999.00
$299.70
