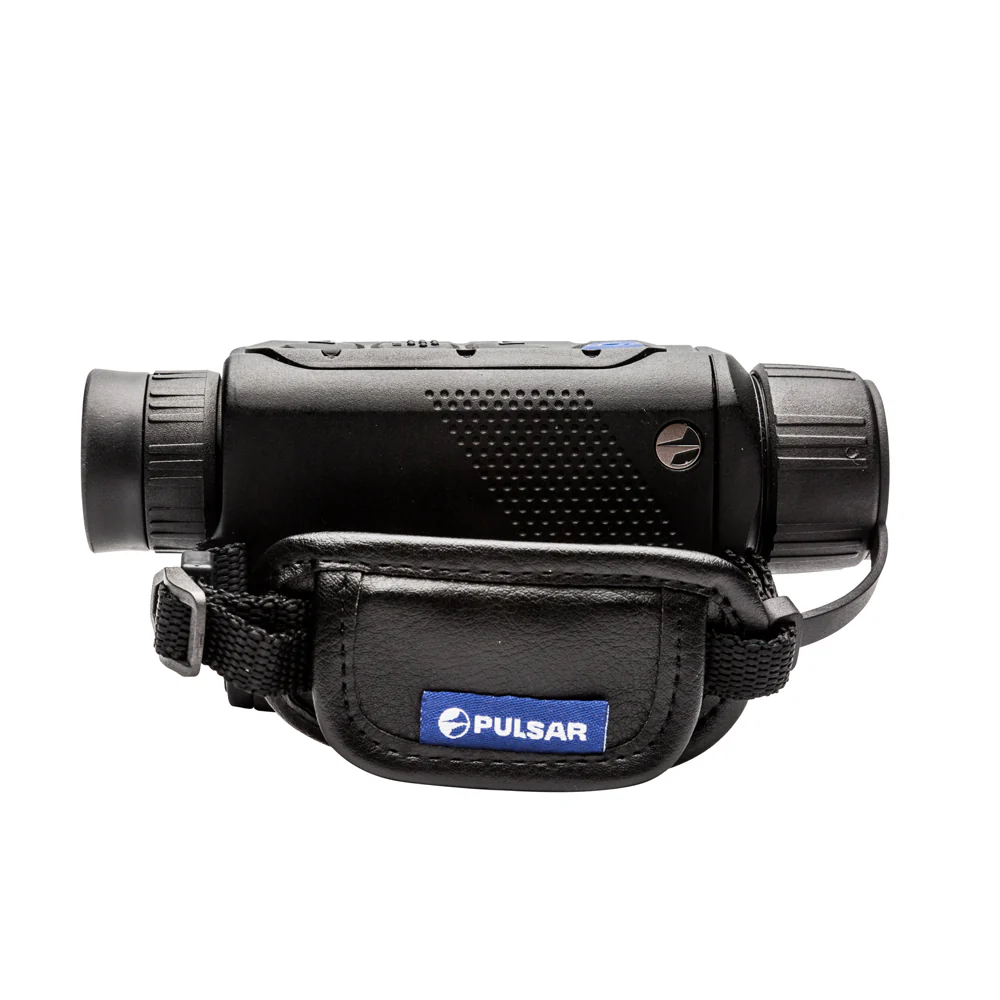

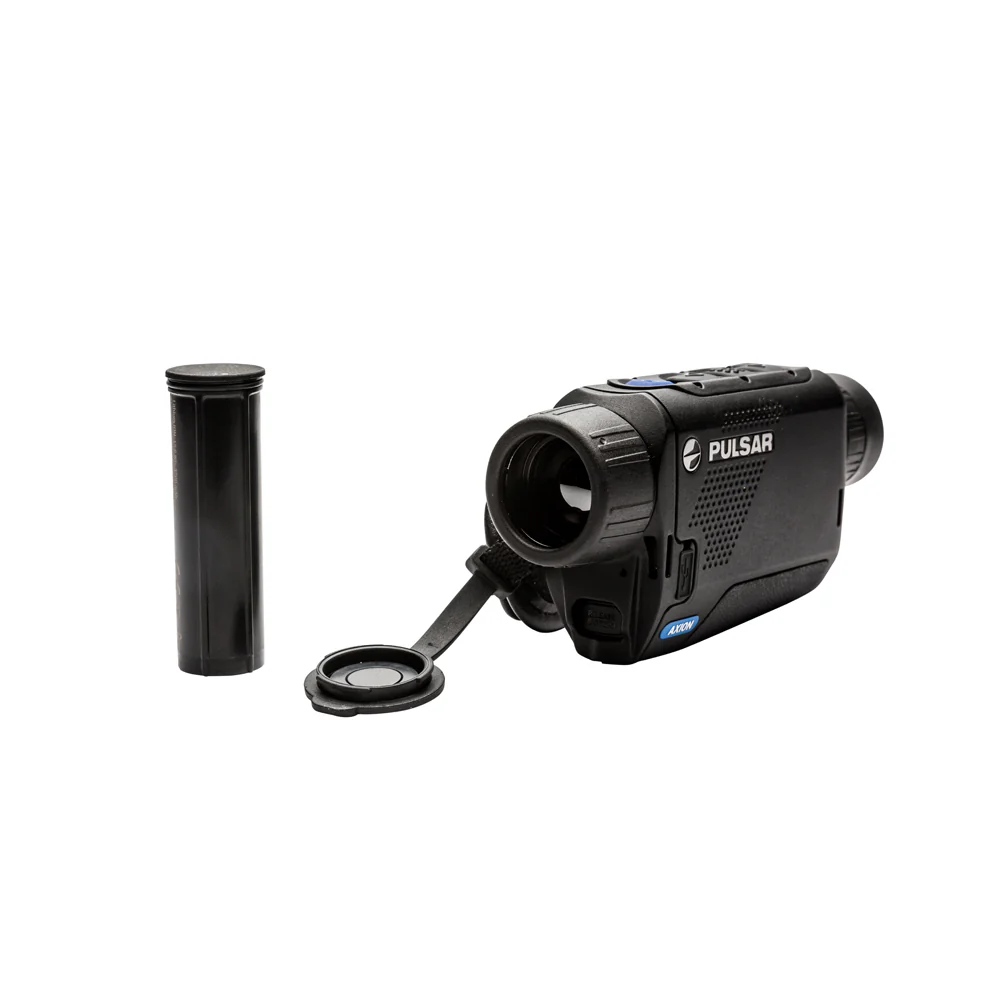

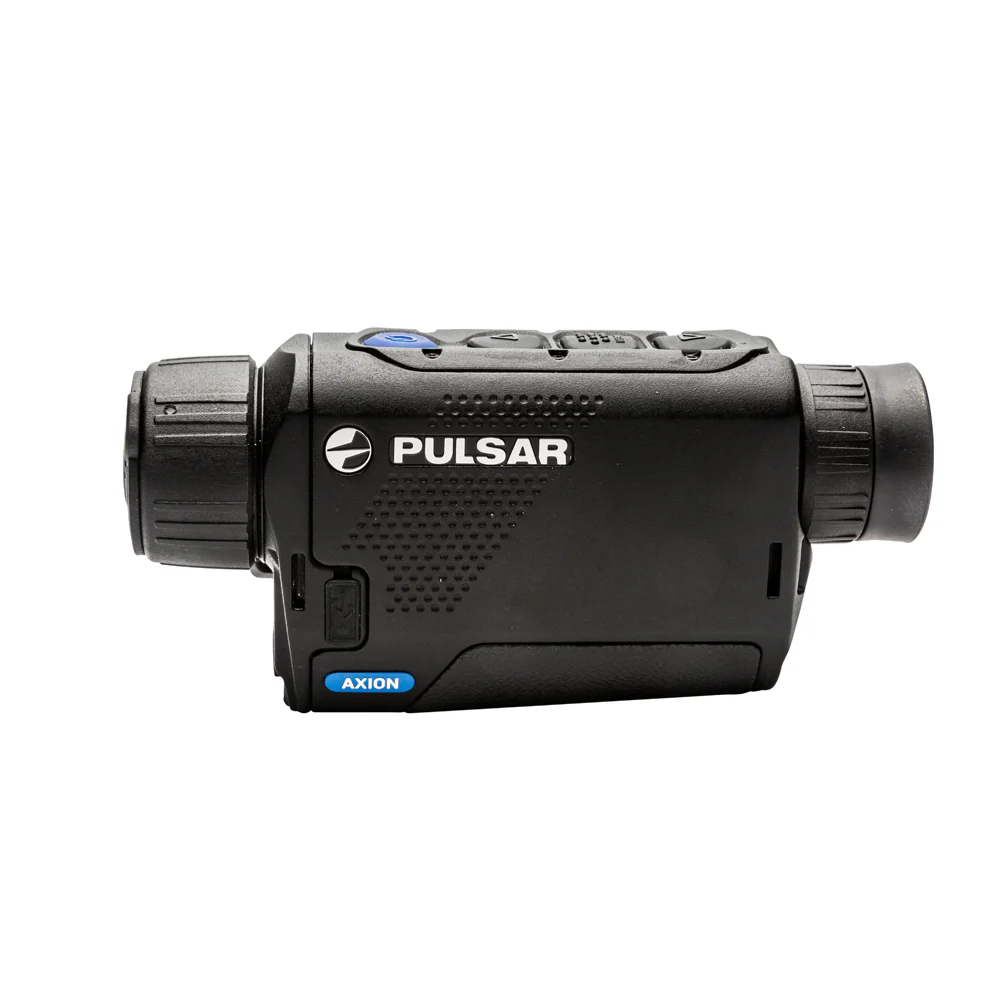

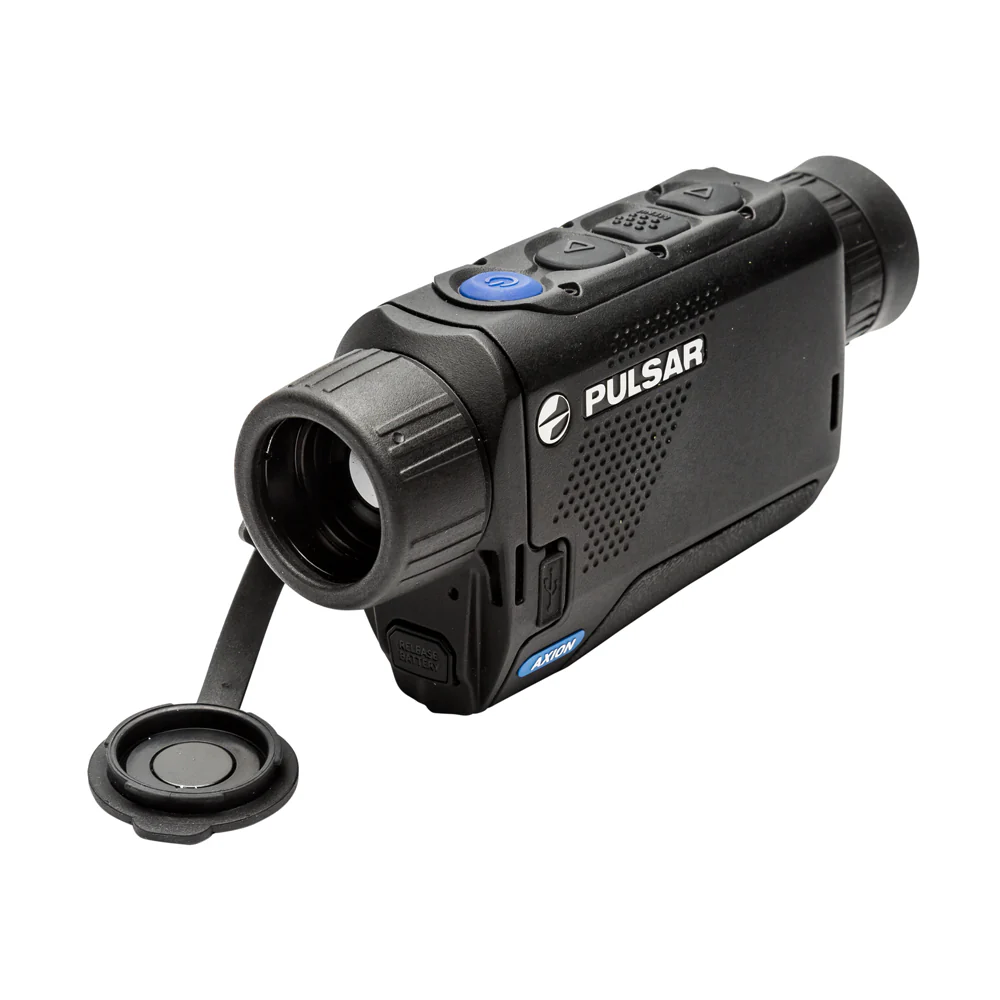

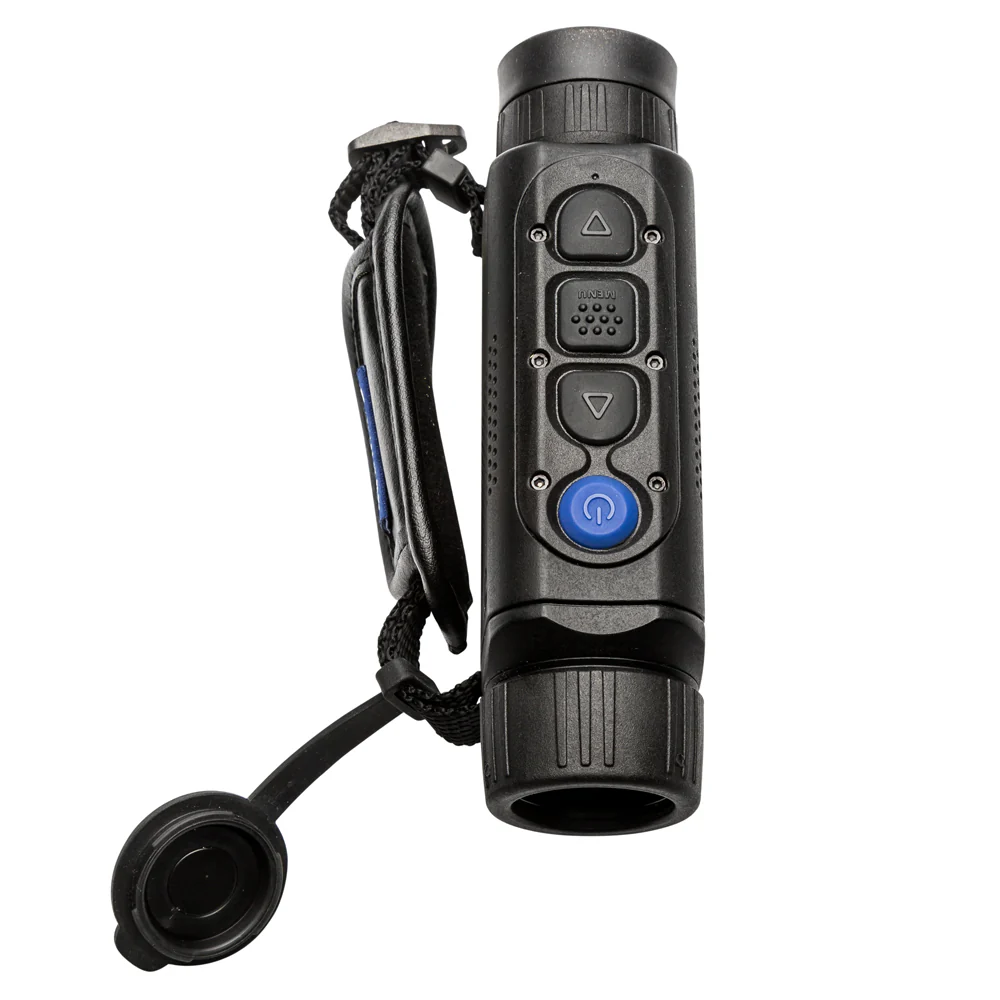

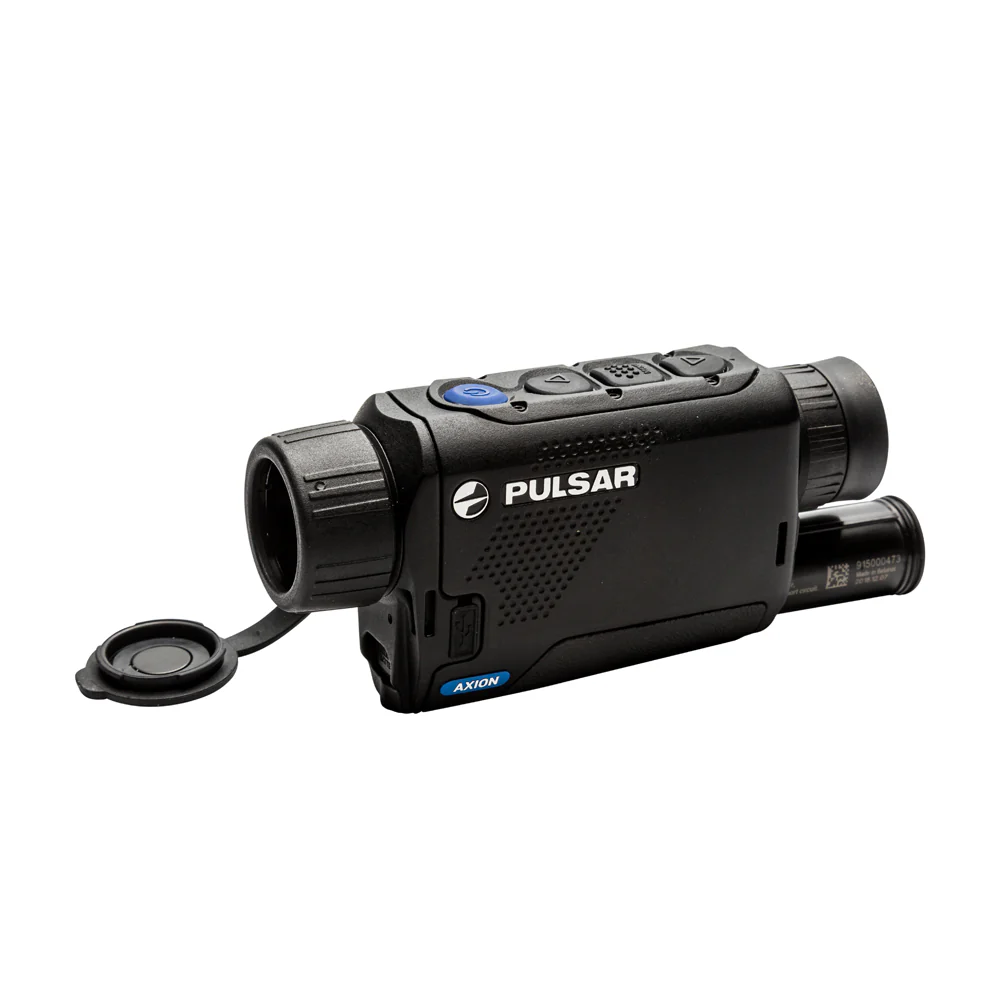

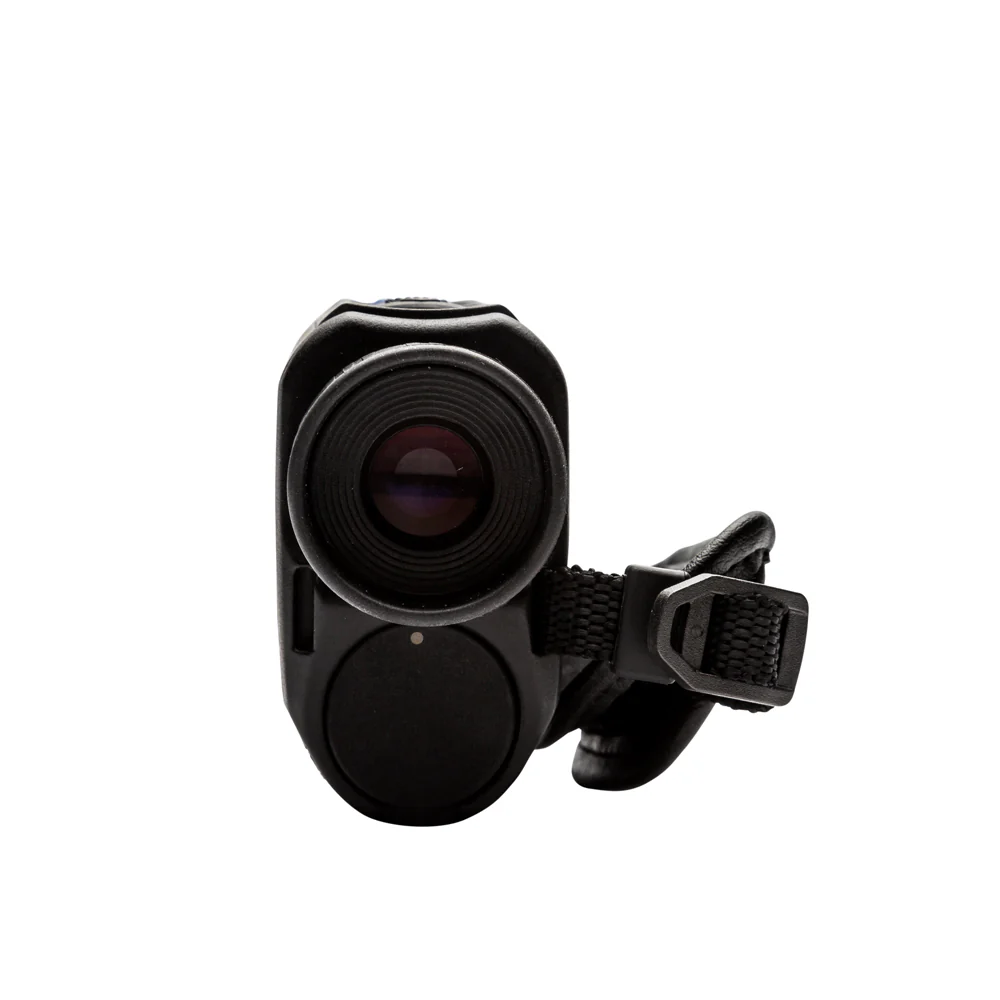

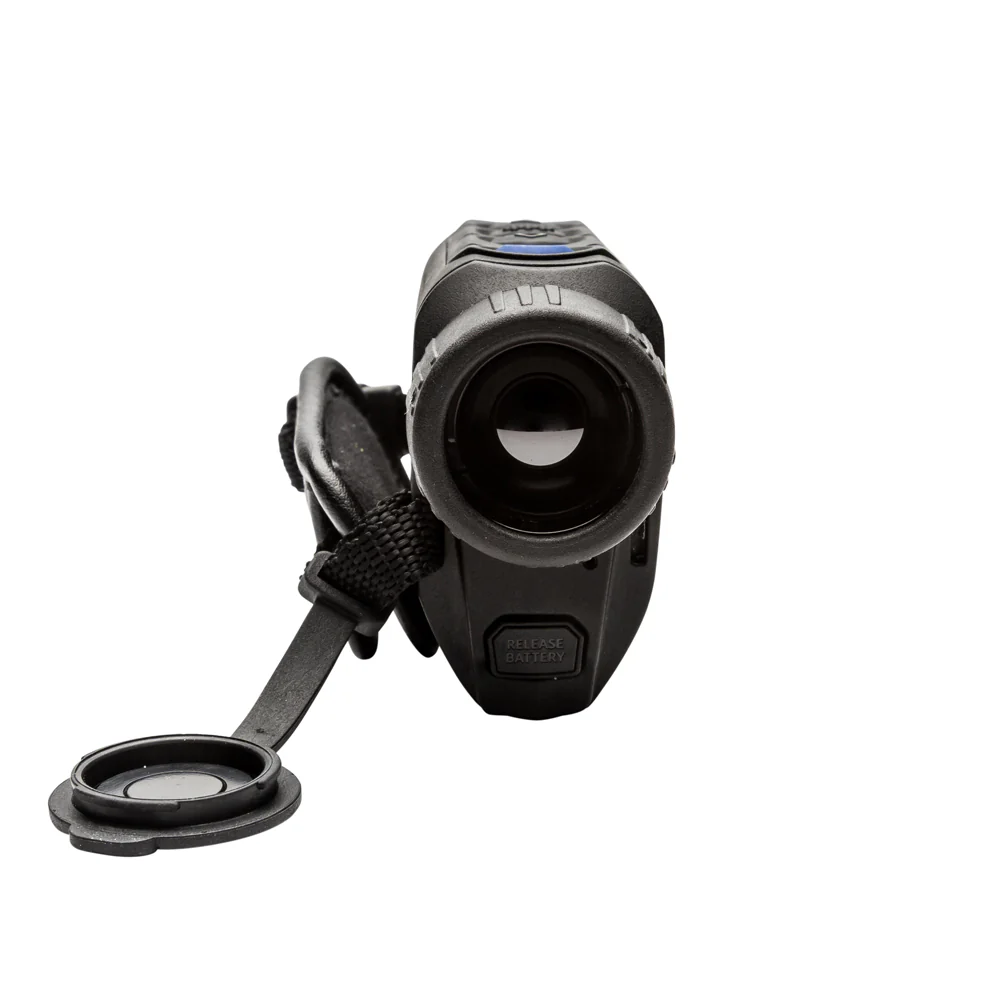

Axion XM30S Thermal Monocular

Description

Weighing 8.8 ounces, the pocket-sized Axion XM30S Thermal Monocular packs a powerful punch. The Axion XM30S boasts an upgraded, full-color 1024x768 HD AMOLED display, 8-color palettes and 4.5x-18x digital magnification. Its 320x240, 12-micron thermal sensor provides a 1,400-yard detection range, and the simple user interface enables users of all skills to operate it. With a 3-second startup, the Axion XM30S has Wi-Fi connectivity, compatibility with the Stream Vision App, integrated still-image and video recording with audio, picture-in-picture mode and 16gb of internal storage. Built with rugged reliability in mind, the Axion XM30S features a textured magnesium-alloy body and is IPX7 waterproof-rated (submersible in 3 feet of water for up to 30 minutes).

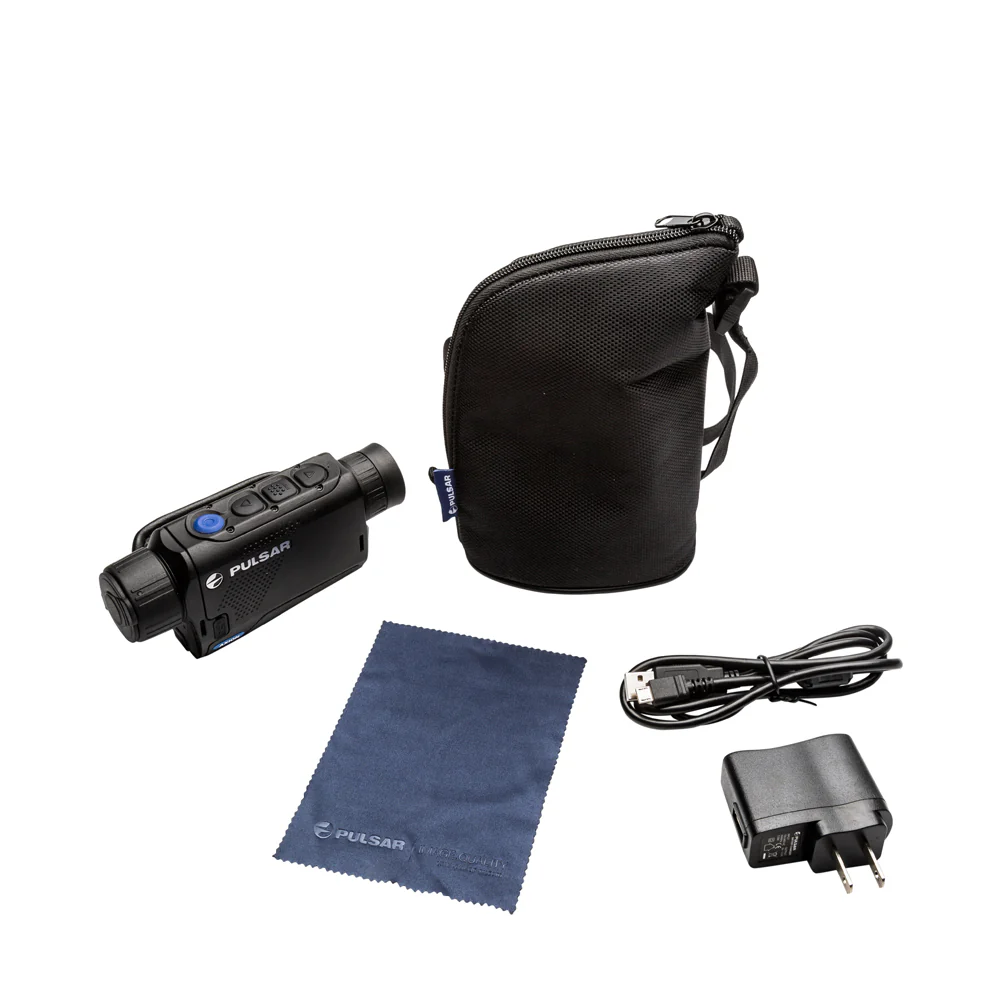

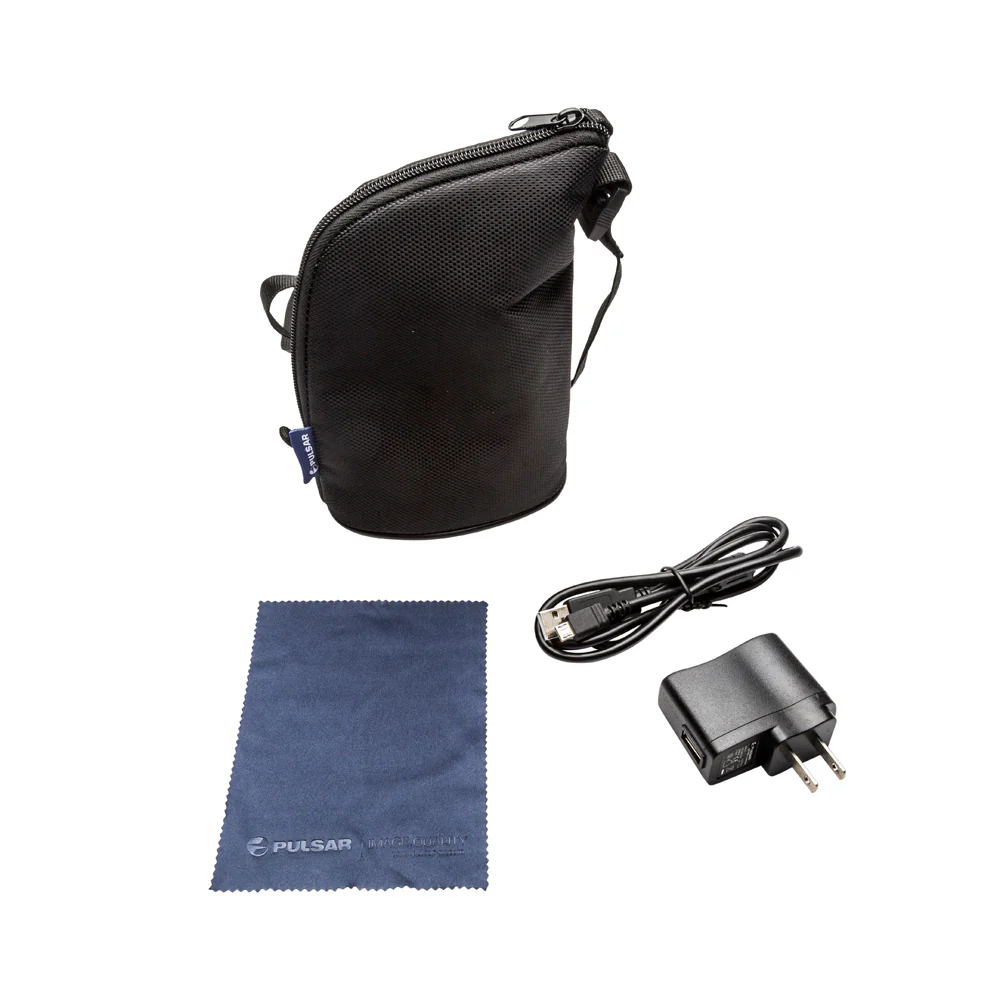

Included in Package

• APS 3 battery pack
• Battery pack charging kit
• USB cable
• Hand strap
• Lens cleaning cloth
• Carrying case

Battery Used

• Type: APS 3 (Li-Ion) Battery Pack
• Quantity: 1

Product Downloads

• Product Manual
• Quick Start Guide
• Product Specifications

Features

• 320x240 resolution - 12um pixel pitch core
• 1400 yard detection range
• High optical magnification
• 4x digital zoom - continuous zoom and 2x / 4x stepped zoom
• Lightweight and rugged magnesium alloy housing
• B-pack mini power system
• Picture in picture digital zoom

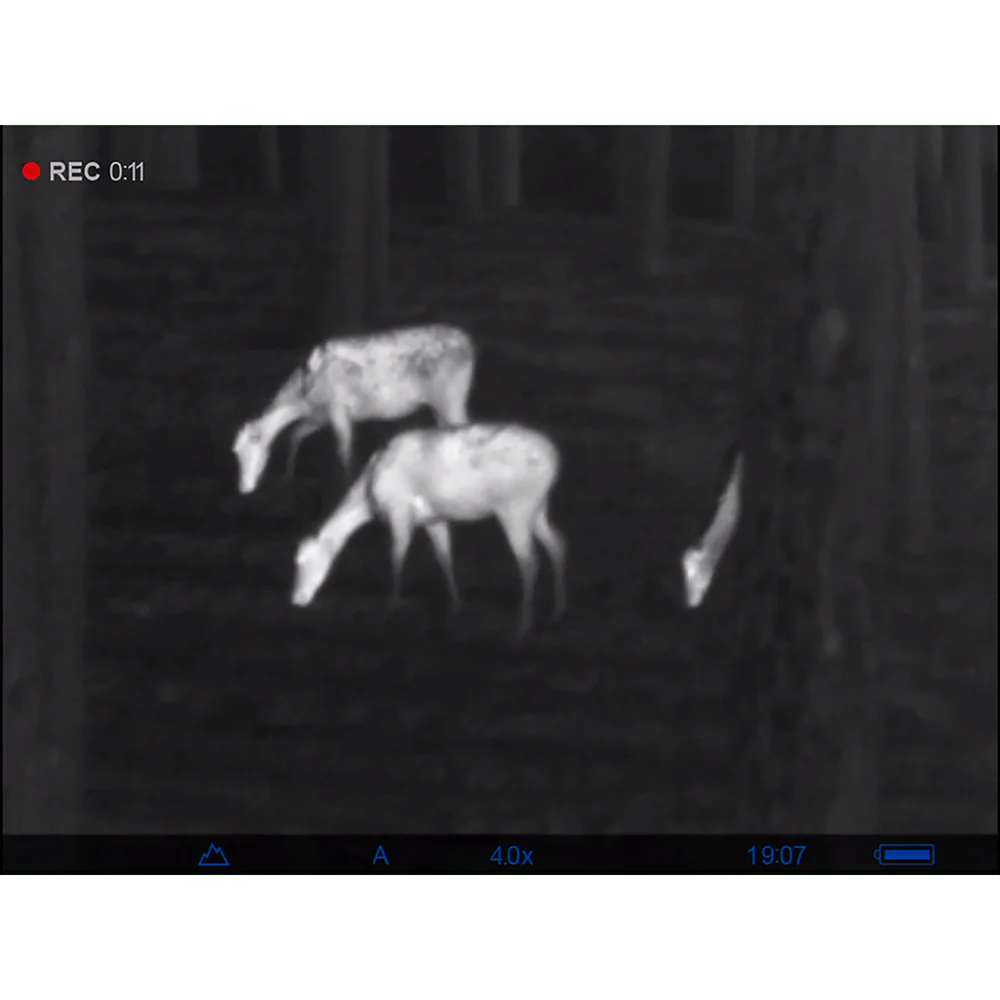

• Video and photo recording
• HD AMOLED microdisplay
• Stream Vision app supported
• External power supply adaptable

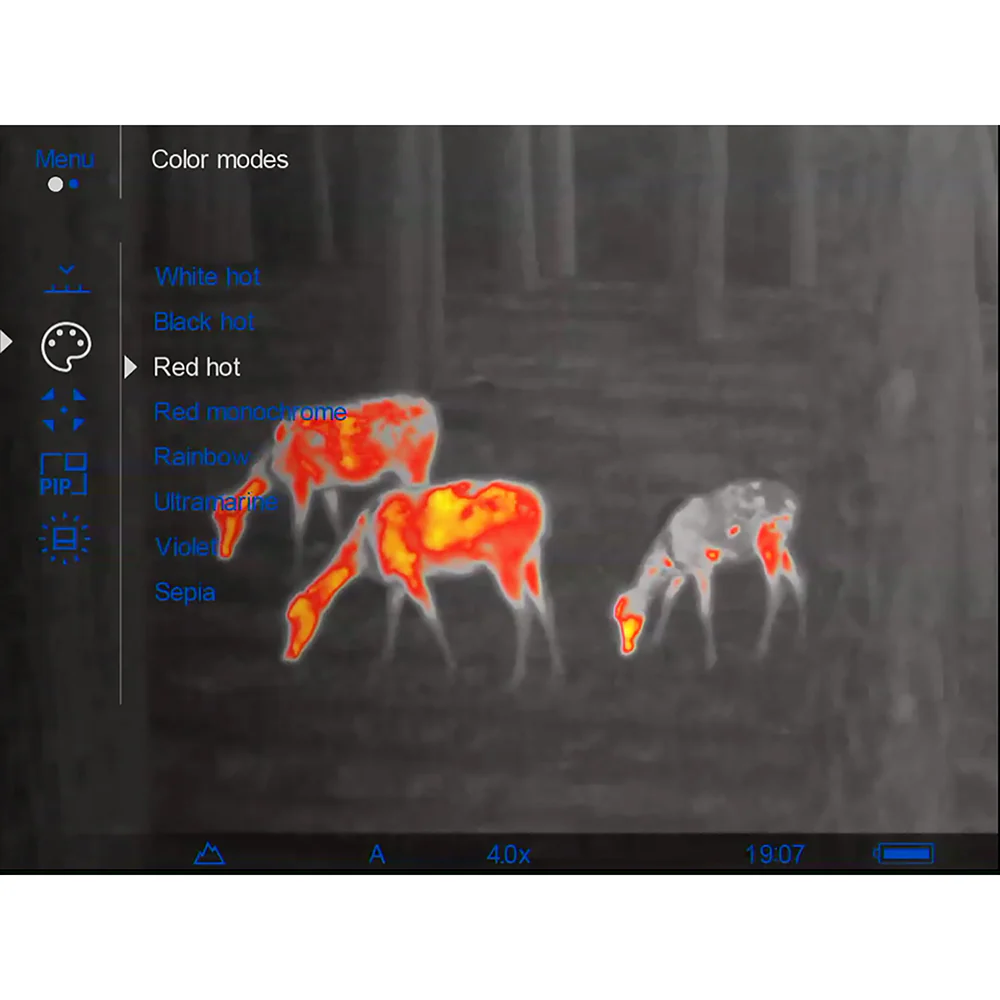

• Multiple color viewing modes
• Stradiametric rangefinder
• IPX7 waterproof rated

EXPORT CONTROL NOTICE: This product is controlled for export and in-country transfer under the Export Administration Regulations (EAR). division contrary to U.S. law prohibited.

Specifications

Frame Rate, Hz	50
Microbolometer Resolution, pixels	320x240
Sensor response	LWIR
Spectral Sensitivity, µm	8-14
Pixel Pitch, µm	12
Display Type	AMOLED
Display Resolution, pix.	1024x768
Built-In Memory, Gb	16
Built-in Video Recorder Availability	Yes
Video Clip, Format	MP4
The Operation Modes	Rocks, Forest, Identification
Format of photo files	JPG

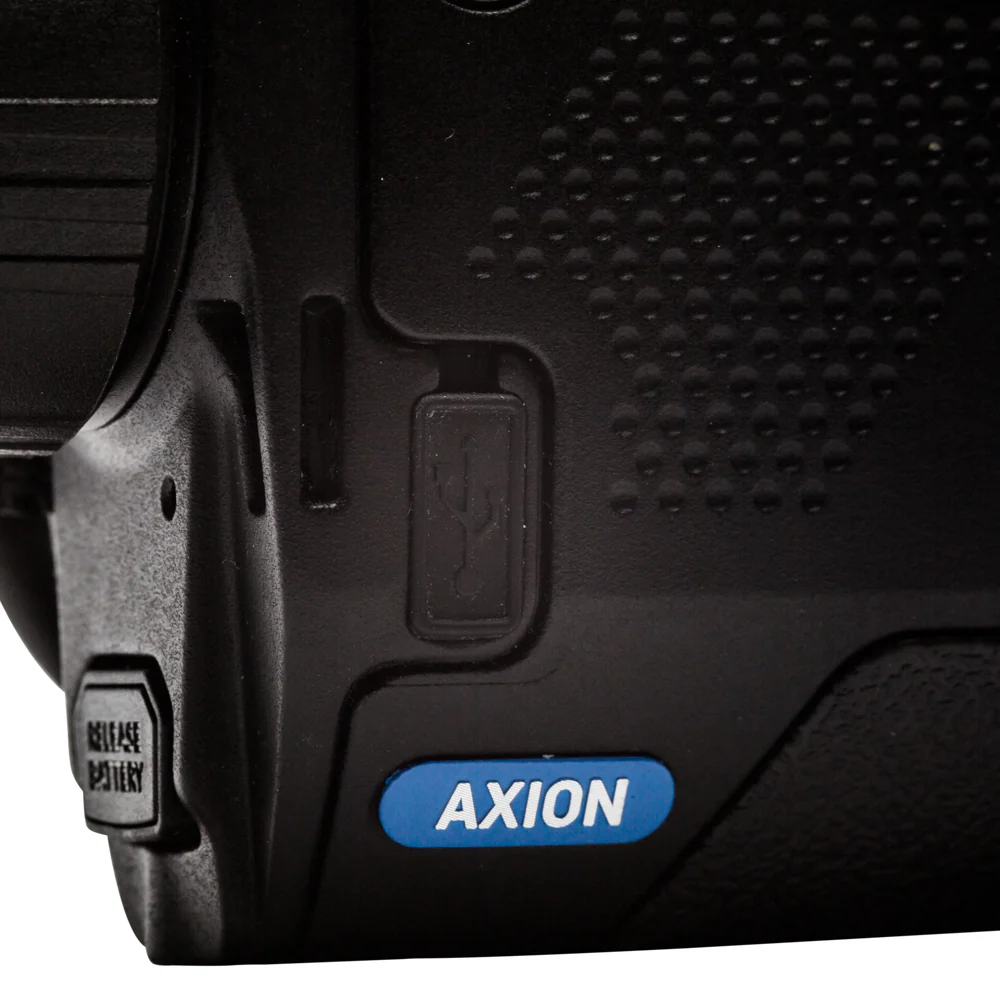

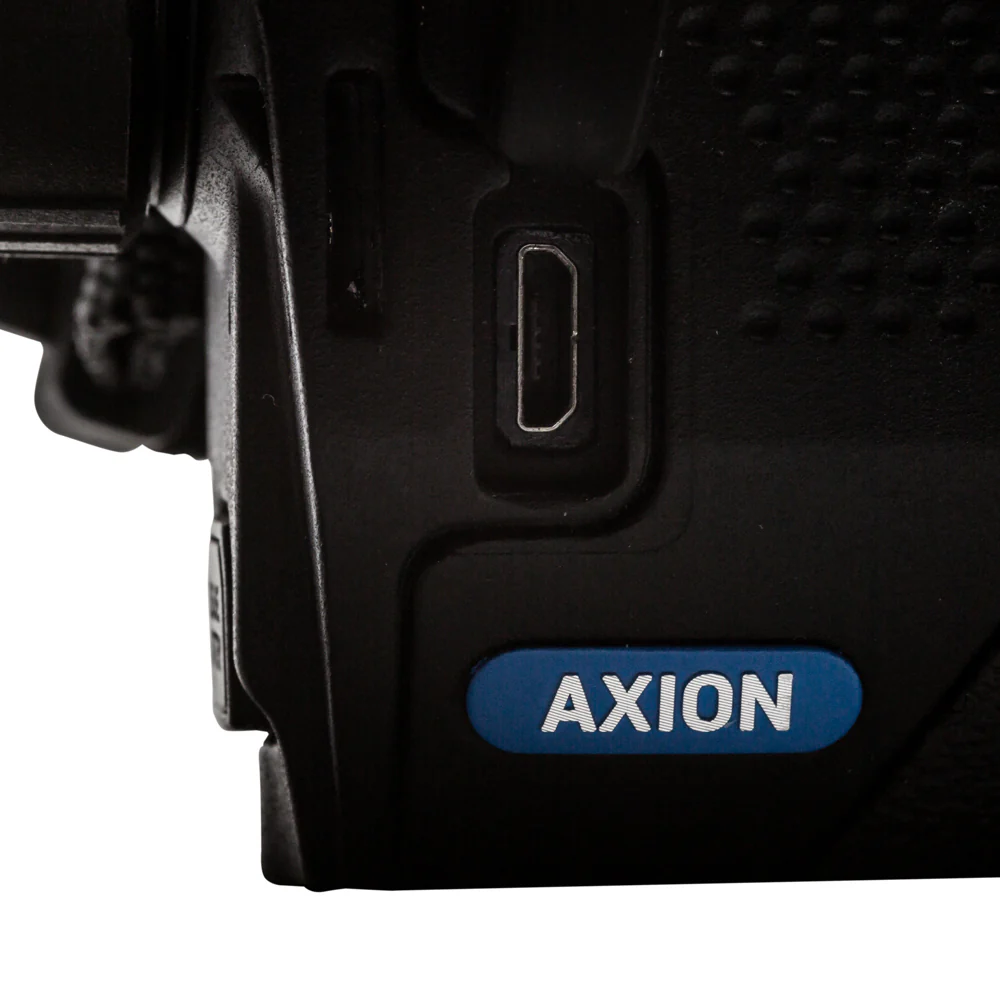

Micro USB Socket	Power/data
Resolution of photo files	1024x768
Defective Pixel Repair Option	Yes
Integrated Wi-Fi	Yes
Stream Vision support	Yes
Stadiametric Rangefinder	Yes
Multiple color palettes	Yes
Magnification	4.5-18 x
Digital Zoom	4x digital zoom - continuous zoom and 2x / 4x stepped zoom x
Lens diameter, mm	24
Field of View, degrees	7.3
Lens Focus, mm	30
Relative aperture, D/f'	1:1.2
Field of view, m@100m	12.8
Field of view, ft@100yd	38.4
Exit Pupil, mm	3.5
Diopter Adjustment	± 5
Eye Relief, mm	15
Focusing Type of Distance	Objective
Minimum focusing distance, ft/m	10 / 3
Range of Detection	1400/ 1300 yd/m
Battery Life	4+(w/о video out ) hour
Battery Type	APS 3 (Li-Ion)
Power Supply	3 - 4.3 V
External Power Supply	5V MicroUSB
Lens Material	Germanium
Body Material	Magnesium alloy
Operating Temp,?F/?C	-13 to 104 / -25 to +40
Level of Protection (acc. to IEC 60529)	IPX7
Tripod Mount, inch	1/4
Weight, oz	8.8
Calibration	manual, automatic, semi-automatic
Length (in/mm)	5.6 / 143
Width (in/mm)	1.6 / 41
Height (in/mm)	2.7 / 69
